締造讓顧客毫無后顧之憂的索具典范。
質量方針中的“締造”，表明我們的追求、決心，我們將通過每位員工的努力, 打造精品工程，以擴大市場占有率，并實現最佳經濟效益。
質量方針中的“讓顧客毫無后顧之憂”，表明我們始終以顧客為關注焦點， 不斷滿足顧客的需求， 并爭取超越顧客的期望。
質量方針中的“索具典范”，表示我們對產品質量的承諾，不做則矣，做便做得更好。

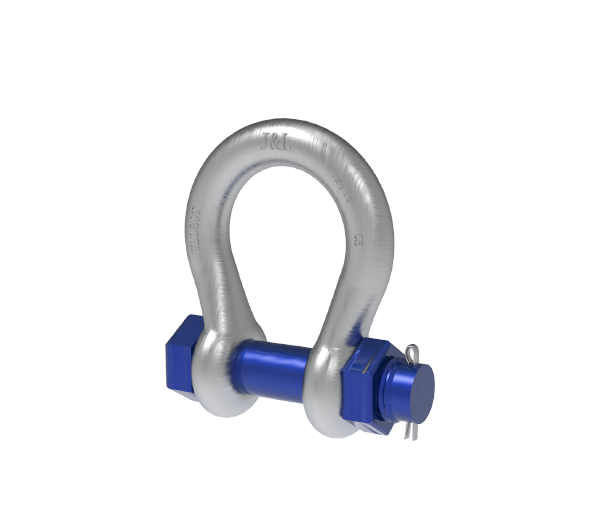

| 產品型號 |
額定載荷 (t) |
W (mm) |
D (mm) |
d (mm) |
E (mm) |
P (mm) |
S (mm) |
O (mm) |
L (BW 型 ) (mm) |
自重 (kg) |
| S-BW0.5-1/4 | 0.5 | 12 | 8 | 6.5 | 15.5 | 6.5 | 29 | 20 | 36.5 | 0.05 |
| S-BW0.75-5/16 | 0.75 | 13.5 | 10 | 8 | 19 | 8 | 31 | 21.5 | 44.5 | 0.1 |
| S-BW1-3/8 | 1 | 17 | 12 | 9.5 | 23 | 9.5 | 36.5 | 26 | 52.5 | 0.13 |
| S-BW1.5-7/16 | 1.5 | 19 | 14 | 11 | 27 | 11 | 43 | 29.5 | 62 | 0.21 |
| S- BW2-1/2 | 2 | 20.5 | 16 | 13 | 30 | 13 | 48 | 33 | 70.5 | 0.3 |
| S-BW3.25-5/8 | 3.25 | 27 | 20 | 16 | 38 | 17.5 | 60.5 | 43 | 88 | 0.64 |
| S-BW4.75-3/4 | 4.75 | 32 | 22 | 19 | 46 | 20.5 | 71.5 | 51 | 102.5 | 1.09 |
| S-BW6.5-7/8 | 6.5 | 36.5 | 27 | 22.5 | 53 | 24.5 | 84 | 58 | 121 | 1.7 |
| S-BW8.5-1 | 8.5 | 43 | 30 | 25.5 | 60.5 | 27 | 95 | 68.5 | 139 | 2.5 |
| S-BW9.5-1 1/8 | 9.5 | 46 | 33 | 29.5 | 68.5 | 32 | 108 | 74 | 154 | 3.79 |
| S-BW12-1 1/4 | 12 | 51.5 | 36 | 33 | 76 | 35 | 119 | 82.5 | 170.5 | 4.89 |
| S-BW13.5-1 3/8 | 13.5 | 57 | 39 | 36 | 84 | 38 | 133.5 | 92 | 186.5 | 7.04 |
| S-BW17-1 1/2 | 17 | 60.5 | 42 | 39 | 92 | 41 | 146 | 98.5 | 201 | 8.35 |
| S-BW25-1 3/4 | 25 | 73 | 52 | 47 | 106.5 | 57 | 178 | 127 | 244 | 13.72 |
| S-BW35-2 | 35 | 82.5 | 60 | 53 | 122 | 61 | 197 | 146 | 275 | 20.33 |
| S-BW55-2 1/2 | 55 | 105 | 72 | 69 | 144.5 | 79.5 | 267 | 184 | 346 | 40.92 |
| 產品型號 |
額定載荷 (t) |
W (mm) |
D (mm) |
d (mm) |
E (mm) |
P (mm) |
S (mm) |
O (mm) |
L (BX 型 ) (mm) |
自重 (kg) |
| S-BX0.5-1/4 | 0.5 | 12 | 8 | 6.5 | 15.5 | 6.5 | 29 | 20 | 37 | 0.05 |
| S-BX0.75-5/16 | 0.75 | 13.5 | 10 | 8 | 19 | 8 | 31 | 21.5 | 45 | 0.1 |
| S-BX1-3/8 | 1 | 17 | 12 | 9.5 | 23 | 9.5 | 36.5 | 26 | 54 | 0.13 |
| S-BX1.5-7/16 | 1.5 | 19 | 14 | 11 | 27 | 11 | 43 | 29.5 | 62 | 0.22 |
| S- BX2-1/2 | 2 | 20.5 | 16 | 13 | 30 | 13 | 48 | 33 | 71.5 | 0.31 |
| S-BX3.25-5/8 | 3.25 | 27 | 20 | 16 | 38 | 17.5 | 60.5 | 43 | 89 | 0.67 |
| S-BX4.75-3/4 | 4.75 | 32 | 22 | 19 | 46 | 20.5 | 71.5 | 51 | 105 | 1.14 |
| S-BX6.5-7/8 | 6.5 | 36.5 | 27 | 22.5 | 53 | 24.5 | 84 | 58 | 121 | 1.76 |
| S-BX8.5-1 | 8.5 | 43 | 30 | 25.5 | 60.5 | 27 | 95 | 68.5 | 136.5 | 2.58 |
| S-BX9.5-1 1/8 | 9.5 | 46 | 33 | 29.5 | 68.5 | 32 | 108 | 74 | 149.5 | 3.96 |
| S-BX12-1 1/4 | 12 | 51.5 | 36 | 33 | 76 | 35 | 119 | 82.5 | 164.5 | 5.06 |
| S-BX13.5-1 3/8 | 13.5 | 57 | 39 | 36 | 84 | 38 | 133.5 | 92 | 179 | 7.29 |
| S-BX17-1 1/2 | 17 | 60.5 | 42 | 39 | 92 | 41 | 146 | 98.5 | 194.5 | 8.75 |
| S-BX25-1 3/4 | 25 | 73 | 52 | 47 | 106.5 | 57 | 178 | 127 | 239 | 14.22 |
| S-BX35-2 | 35 | 82.5 | 60 | 53 | 122 | 61 | 197 | 146 | 269 | 21 |
| S-BX55-2 1/2 | 55 | 105 | 72 | 69 | 144.5 | 79.5 | 267 | 184 | 344 | 42.12 |
| S-BX85-3 | 85 | 127 | 85 | 76 | 165 | 92 | 330 | 200 | 401 | 74.8 |
| S-BX120-3 1/2 | 120 | 133.5 | 95 | 92 | 203 | 104.5 | 371.5 | 228.5 | 450 | 123.6 |
| S-BX150-4 | 150 | 140 | 110 | 104 | 228.5 | 116 | 368 | 254 | 500 | 165.9 |
